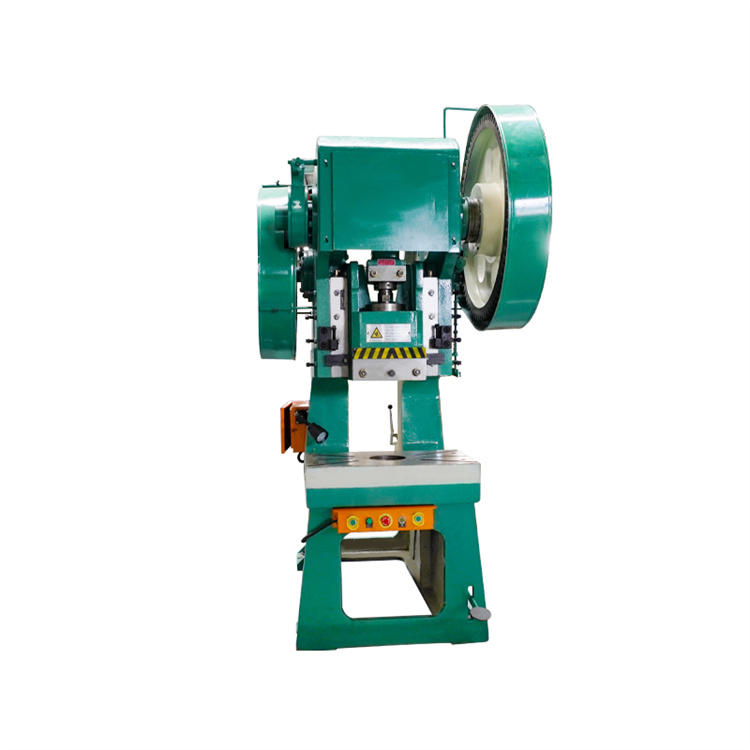

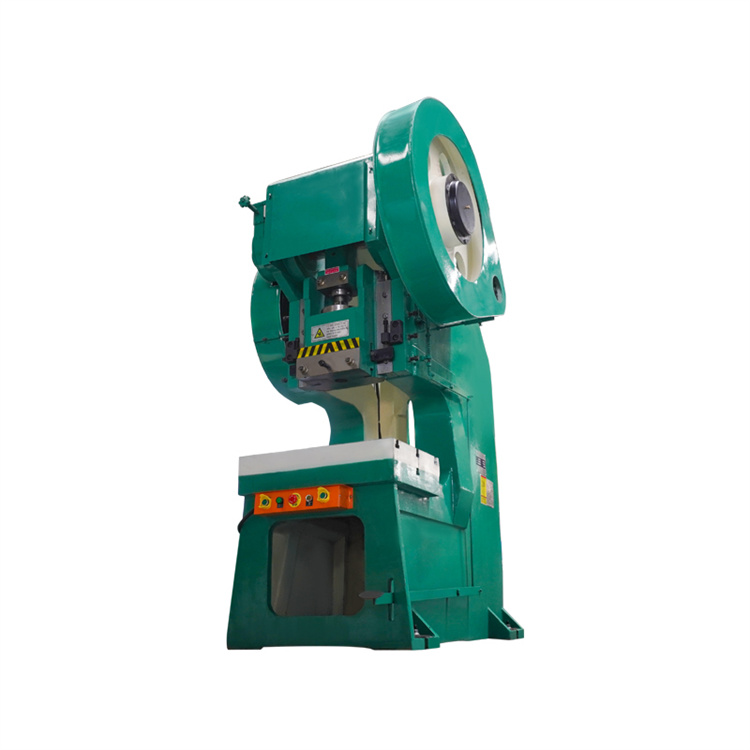

Product Description

Application:
1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.

Product main technical Specifications

Type
Spcification
Unit
JB23-15
JB23-25
JB23B-40
JB23-63
JB23-80
JB23-100
Nominal force
kN
160
250
400
630
800
1000
Stroke under nominal force
mm
5
6
6
8.5
8.5
10
Slide block stroke
mm
55
80
80
80
120
130
Number of stroke
times/min
120
60
50
50
50
45
Max die set height
mm
220
220
250
270
340
340
Die set height adjustment
mm
45
45
60
80
80
100
Distance from slide block center to the frame
mm
160
230
210
260
260
280
Workable dimensions(F·B×L·R)
mm
300*450
400*520
410*630
480*710
480*800
500*900
Dimensions of worktable hole
mm
Φ100
Φ120
Φ155
Φ220
Φ220
Φ180
Thickness of bolster
mm
45
50
70
90
90
95
Dimensions of slide block(F·B×L·R)
mm
180*200
180*200
190*210
270*310
270*310
360*400
Size of the handle hole(Diameter×Depth)
mm
Φ40*60
Φ40*60
Φ50*70
Φ50*70
Φ60*80
Φ60*80
Distance between columns of body
mm
220
250
360
350
350
420
Motor
Type
Y90L-6
Y100L-4
Y112M-4
Y132S-4
Y132S-4
Y132S-4
Power
kw
1.5
3
4
5.5
5.5
7.5
Max. tilting angel of body
º
25
25
25
25
20
20
Outline dimension(F·B×L·R×H)
mm
1130*830
*1890
1120*860
*2200
1600*1100
*2250
1740*1100
*2560
1850*1265
*2650
2050*1400
*2850
Net weight
Kg
1090
2100
2960
3800
5015
6120

The main performance characteristics:

1, Steel plate welding machine, good rigidity, more stable accuracy.
2, Crankshaft longitudinal, compact structure, beautiful appearance.
3, Electric adjustment of the height of the mould, digital display control height.
4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6, Collapse type safety device, to ensure the safety of the whole machine.
7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8, The slider can be moved with a small movement, emergency stop motion, more secure operation.
9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.

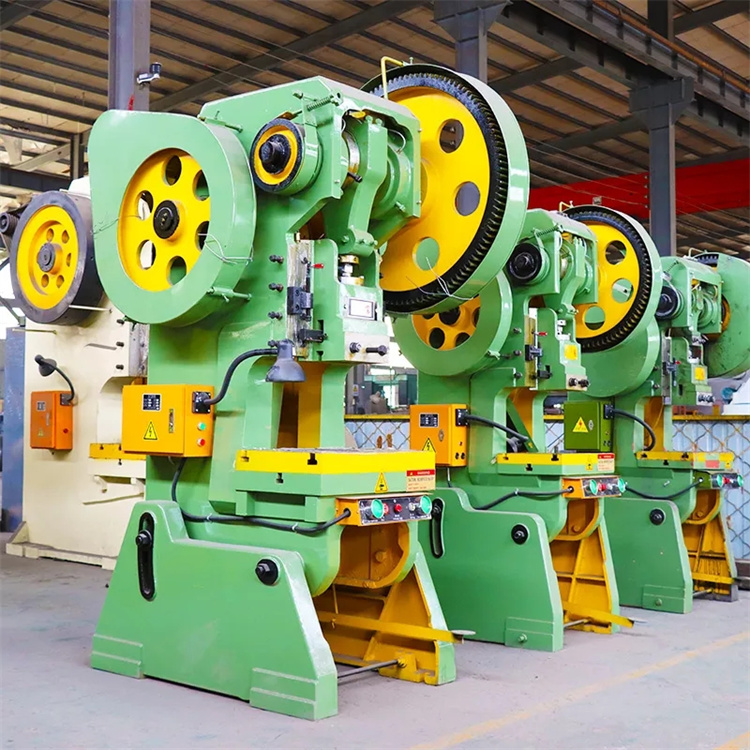

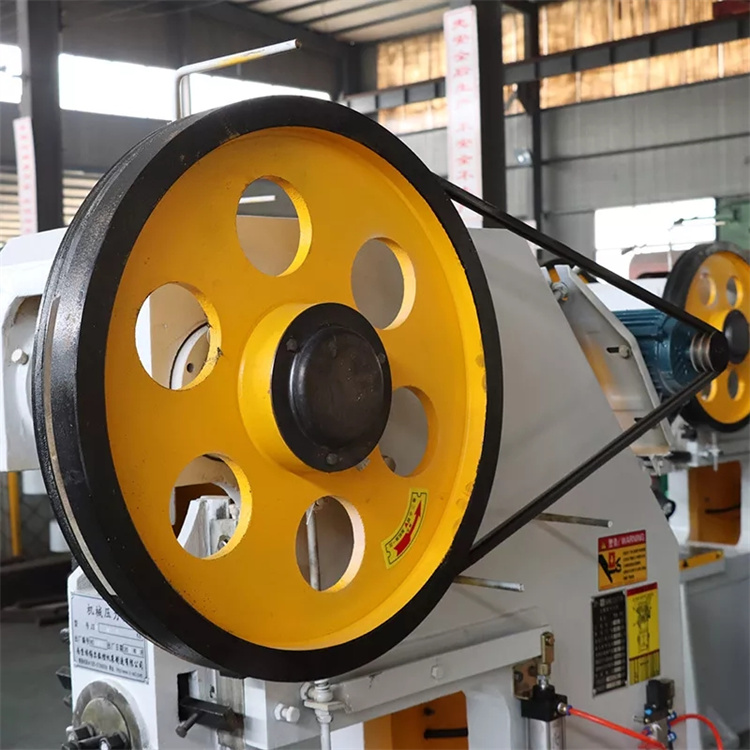

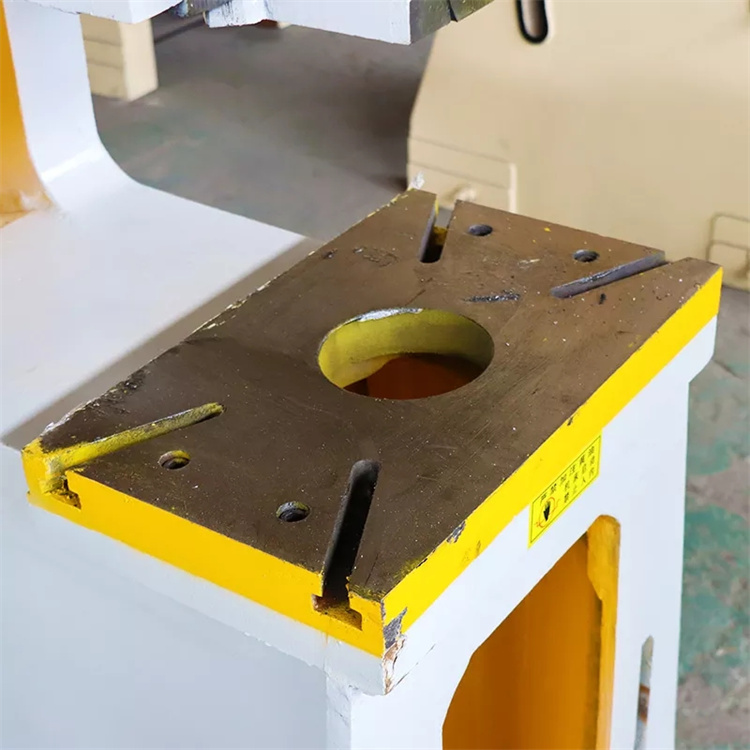

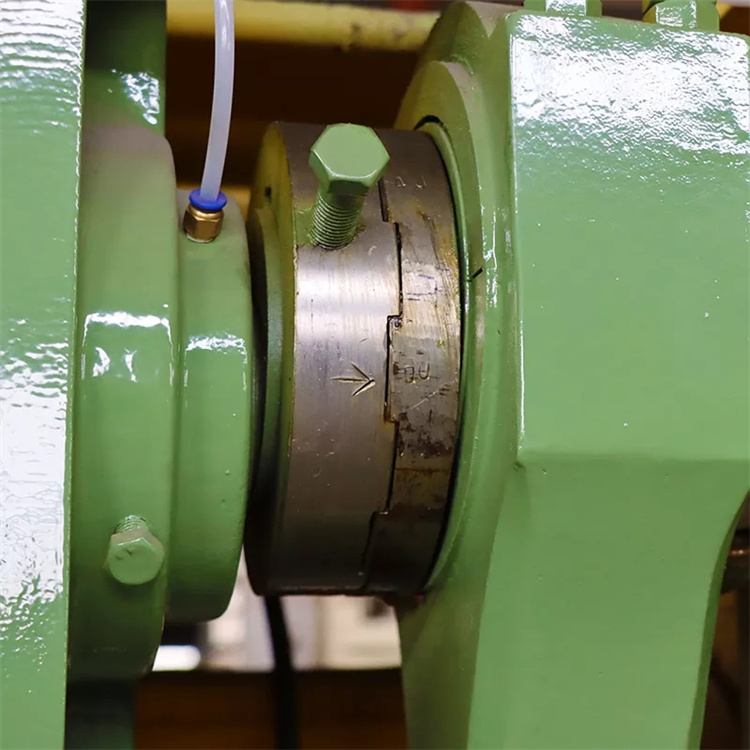

Detailed Images

FEATURES AT A GLANCE

J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing (copper bearing ) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing
