Laser Cutter Sheet Metal Fiber Laser Cutting Machine

Application Materials: Fiber laser cutting equipment is suitable for metal metal cutting such as stainless steel sheet, carbon steel sheet, alloy steel plate, copper steet, gold plate,sliver plate, titanum plate, steel sheet, tubes and pipes etc.

Application Industries: Jewelry, kitchen ware, chassis and cabinet, metal pipe, lamp & lanterns, metal ware, hardware, precision machinery, auto parts, elevator, nameplate, advertisement, eyes glasses, electrical appliance, electronics, micro-electronics, toys and other industries.

Fiber laser machine 1530 with standard configuration.

#. Heavy duty structure 3500kg
#. Raycus laser generator
#. WSX brand cutting head

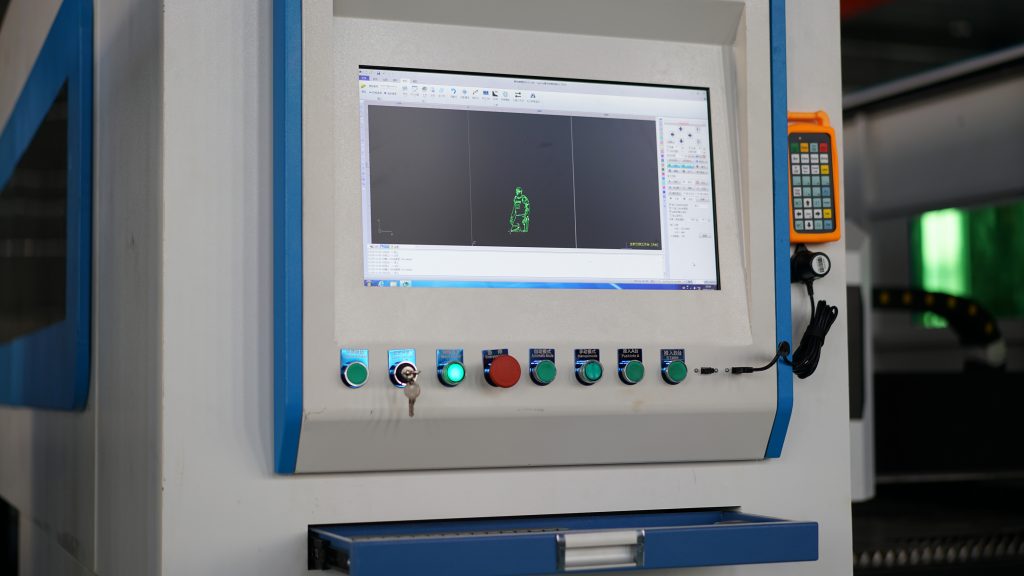

#. Cyput controller system with wireless hand-wheel
#. X Y axis JapaneseYaskawa servo motor 850w, Z axis panasonic servo motor 400w
#. Taiwan APEX gear and rack
#. Taiwan Hiwin guide rails 30mm
#. Rack and pinion transmission
#. Japanese SMC Airtac pneumatic element
#. Industrial water chiller
#. French MOTOVARIO reducer
#. French Schneider Electronic Components
#. Including computer

Product Description

Machine Model		GF3015
Cutting Area(length x width)		3000mm×1500mm
Laser Model		Fiber laser IPG-500W/1000W
Laser Wavelength		1,070-1,080nm
CS Cutting Thickness		Max. 5mm/10mm
SS Cutting Thickness		Max. 3mm/5mm
Interface		USB,RJ45
X-Axis	Moving Speed	50m/min
	Stroke	3000mm
	Position Accuracy	±0.05mm/m
	Repeatability Accuracy	0.05mm
Y-Axis	Moving Speed	50m/min
	Stroke	1500mm
	Position Accuracy	±0.05mm/m
	Repeatability Accuracy	0.05mm
Z-Axis	Stroke	50mm
Power Supply Requirement		400V/50Hz/30A(36A)
Continuous Working Time		24Hours
Machine Weight		Approximate 3000kg
Dimension(length×width×height)		4500mm×2300mm×1500mm
