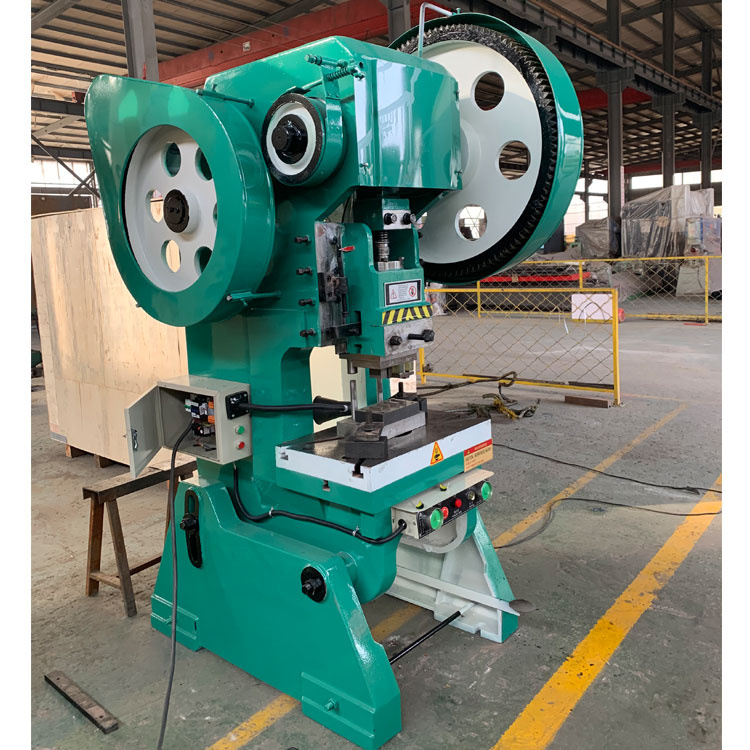

J23 Series 16 Ton Table Mechanical Power Press Machine For Metal Hole Punching

Home / Products / J23 Series 16 Ton Table Mechanical Power Press Machine For Metal Hole Punching

J21 J23 Machanical Punching Machine

Products Description

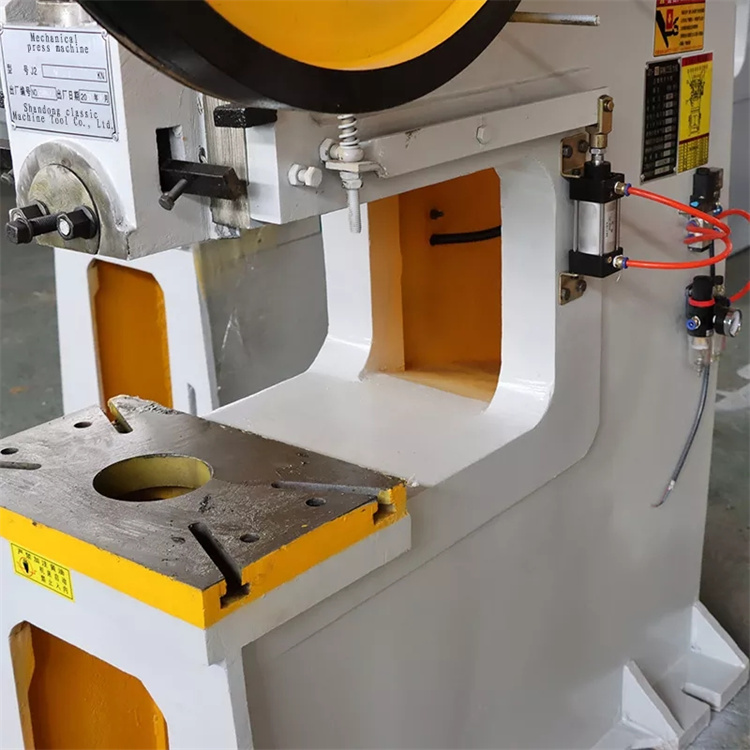

1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.
2. Steel-welded frame, high rigidity and less deformation Compact.
3. Thick plates and large columns provide you with the stable platform you need for your demanding application.
4. High accuracy, high efficiency, simple and convenient operation, good performance.
5. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical.
6. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.

Product Paramenters

Item
10T
16T
25T
40T
63T
80T
100T
Norminal capacity (KN)
100
160
250
400
630
800
1000
Slide strokes (Times/min)
150
140
100
50
50
45
45
Slide stroke (mm)
50
60
60
100
110
115
130
Max closing height
200
245
300
350
380
385
400
Die height adjustment
30
50
70
75
80
80
100
 Distance between slider center and machine
120
160
185
220
250
260
280
Workbench size
Front and back
230
280
320
400
450
490
553
Left and right
370
455
540
650
700
760
830
Workbench diameter
100
130
130
140
170
170
190
Pole distance
215
215
235
245
310
310
345
Shank Hole Size
Diameter
30
35
38
40
60
60
60
Depth
50
50
60
60
60
60
85
Pad thickness
40
50
55
70
85
95
95
Motor power
1.5
2.2
2.2
3
5.5
7.5
7.5

Performances & Characteristics

1. Steel welded fuselage with higher strength and stiffness;
2. C-typed fuselage convenient for die installation and large material processing;
3. Cross crankshaft which is convenient for maintenance;
4. Rigid rotating key clutch with simple structure;
5. Pressing type of safety device to protect the whole machine from being damaged due to overloading;
6. Belt brake for easier adjustment;
7. Bigger throat depth especially suitable for cold processing of large plates;
8. Fuselage with higher strength and stiffness, economic and durable

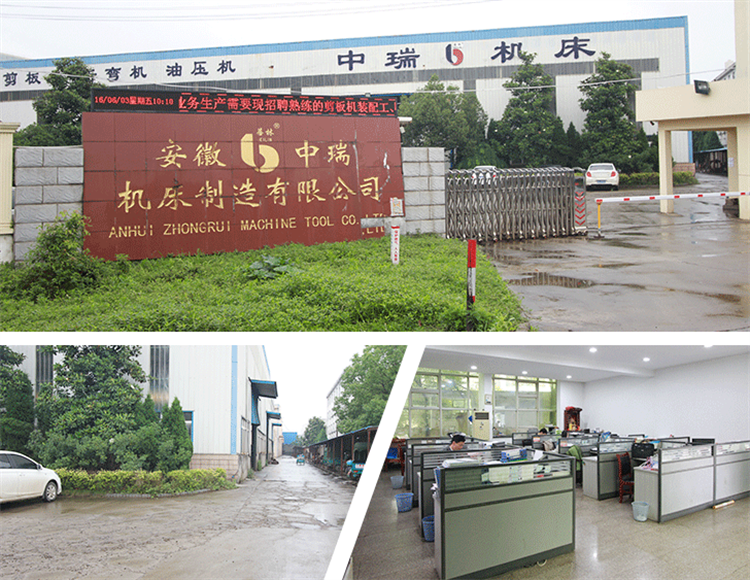

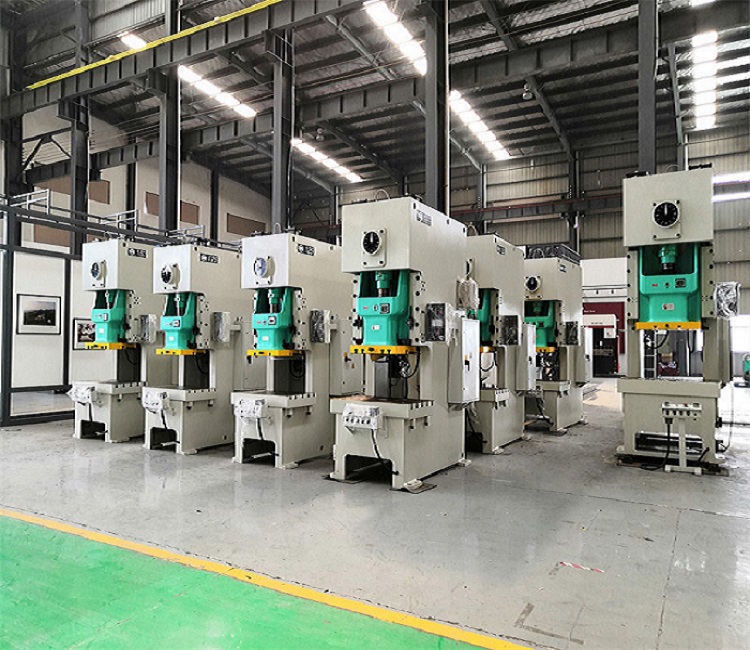

Our factory
