hight precision fiber laser cutting machine for cutting metal sheets and tubes and pipes

Product Name:

---

China Famous hight precision fiber laser cutting machine for cutting metal sheets and tubes and pipes

Descriptions:

---

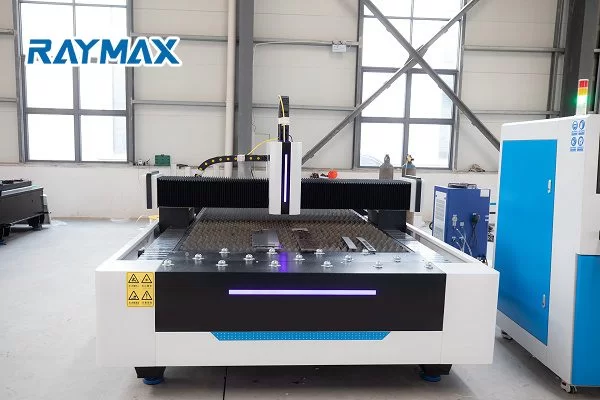

This optical fiber laser cutting machine is equipped with the most advanced international fiber laser, which can output high energy intensive laser beam and focus on the workpiece surface and make the workpieces melting dissolves and gasification and automatically cut through numerical control system. It is high technology equipment that is perfectly intergraded by the most advanced optical fiber laser technology, numerical control technology, precision machinery technology





Product Characteristics:

---

This cutting machine can meet customer’s cutting requirements not only for the plate, and also the cutting of various kinds of pipes, such as round tubes and square pipes

The unique design of the clamp can successfully achieve the rapid adjustment of different pipe materials and ensure to process the high precision workpieces

Equipped with different professional tooling of clamps, specially used for different shapes and sizes of pipes and perfectly make precision processing.

Easily processing the usual square tube, round tube and rectangular tube



Quick Details

Application: Laser Cutting, plate and pipe
Condition: New
Laser Type: Fiber Laser
Applicable Material: Metal
Cutting Thickness: 0-10mm
Cutting Area: 3100mmx1550mm
Cutting Speed: 35m/min
CNC or Not: Yes
Cooling Mode: Water Cooling
Control Software: Cypcut
Graphic Format Supported: AI, DST, DWG, DXF, LAS, PLT
Certification: ISO
After-sales Service Provided: Engineers available to service machinery overseas
Economy: high efficient, lower investent, high economy output
Laser power: 1000W / 2000W / 3000W
Function: Cutting Metal Materials



Technical parameters:

---

X/Y axis positioning accuracy: ±0.05mm/m

X/Y axis repositioning accuracy: ±0.03mm/m

X/Y axis maximum poisoning speed: 80m/min

Max. Cutting Range	1550mm x 3100mm	1550mm x 4100mm	1550mm x 6100mm	N/A
Cutting Diameter for Tube	≤ 160mm	≤ 160mm	≤ 160mm	N/A
Cutting Thickness	≤ 6mm	≤ 6mm	≤ 6mm	N/A
CNC System	Cypcut	Cypcut	Cypcut	According to Demands
Transmitting System	Gantry Dual Drive	Gantry Dual Drive	Gantry Dual Drive	According to Demands
Max. Accelerating Speed	1.5G	1.5G	1.5G	N/A
Lifting Adjustment	Surface Following	Surface Following	Surface Following	N/A
Mini. Line Width	0.15mm	0.15mm	0.15mm	N/A
laser Power	1000W/2000W/3000W	1000W/2000W/3000W	1000W/2000W/3000W	N/A
