High speed J23 Series Power Press /Hardware Aluminum Foil container making Punching Machine

Product Description

Main feature

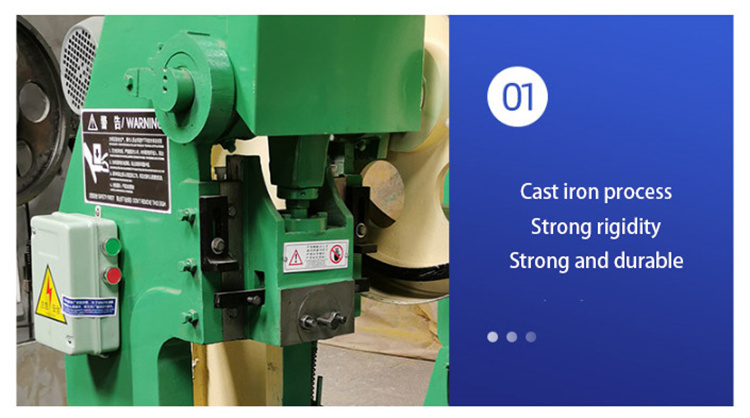

1, With foundry structure for better vibration resistance.
2, Adopt horizontally placed crankshaft, external gear is open and easy for maintenance.
3, The good rigidity of Casting box structure slider
4, Built-in block collapsed overload protection device, the structure is simple, if slider after
overload, fuse collapsed destroyed to protect the machine and mold from damage
5, Four elongated triangular rail, easy for adjustment.
6, Adopts hands and foot switch operation buttons design, it’s easy to activate continuous,
single and adjustment practices.
7, Compatible with the corresponding punch automatic feeding system, which having a feeding error detection, pre-cut and pre-breaking device, low cost and high efficiency.

Application

Punch widely used in electronics, communications, computers, household appliances, furniture, transportation, (automobile, motorcycle, bicycle) hardware parts stamping and forming. Basically be aimed at plank. Through the mold, we can make blanking, punching, forming, drawing, dressing, fine punching, shaping, riveting and extrusion parts and so on, widely used in various fields. For example, we use switch sockets, cups, cupboards, dishes, computer cases,  there are a lot of accessories can be produced by punching through the mold.

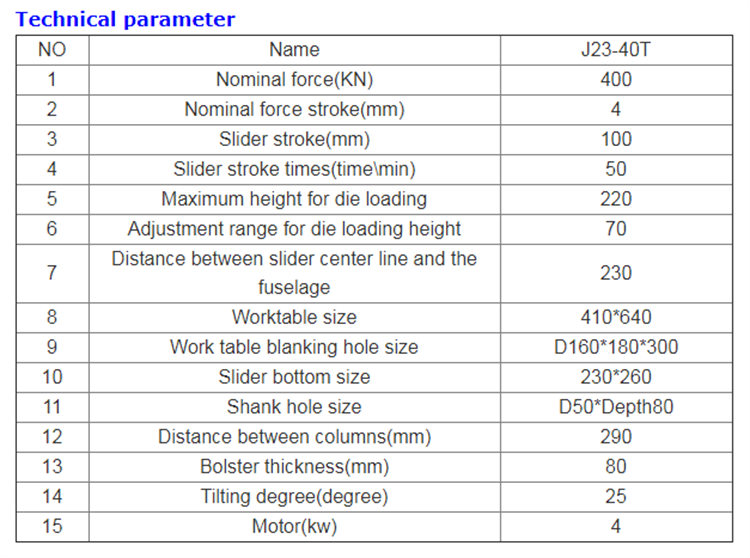

Specification
