Product Overview

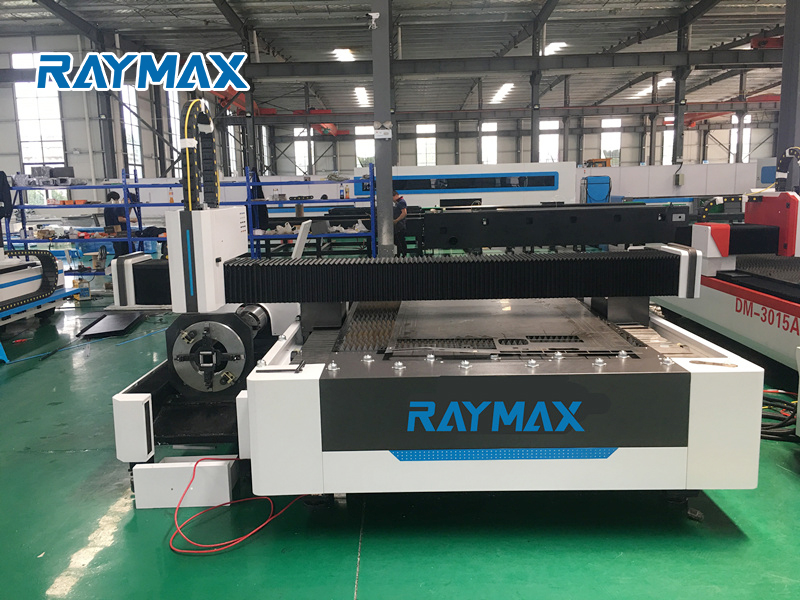

3015 1500X3000 Aluminium Fiber Laser Cutting Machine Industrial Laser Equipment

FEATURES AT A GLANCE

1000w 2000w 3kw 3015 fiber optic equipment cnc lazer cutter carbon metal fiber laser cutting machine for stainless steel sheet

Machine Model
LX3015F(4015/6015/4020/Optional)
Power of Generator
1000-20000W
Dimension
4800*2600*1860mm
Working Area
1500*3000mm(Other size can be customized )
Max Running Speed
120m/min
Specified Voltage And Frequency
380V 50/60HZ
Max Acceleration
1.5G
Repeated Positioning Accuracy
±0.02mm

PRODUCT CONFIGURATION

1000w 2000w 3kw 3015 fiber optic equipment cnc lazer cutter carbon metal fiber laser cutting machine for stainless steel sheetHigh quality carbon iron aluminum metal stainless steel cutting 1000w 1500w 2000w 3kw cnc fiber laser cutting machine

Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
1530 500W 1000W 2000W automatic fiber laser cutting machine price for stainless steel
Steel Plate Weld Machine Frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;Effect force annealing treatment, high mechanical strength, not easy to deform; Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed; The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.
1000w 2000w 3kw 3015 fiber optic equipment cnc lazer cutter carbon metal fiber laser cutting machine for stainless steel sheetIntelligent Autofocus
The high efficiency cooling:
Collimating lens and focus lens group are cooling structure, increase cooling airflow nozzle at the same time, the effective protection of nozzle, the ceramic body, prolonged work time.

Chase the light aperture:
Through the pore diameter of 35 mm, effectively reduce the stray light interference, ensuring cutting quality and service life.

Automatic focus:
Automatic focus, reduce human intervention, focusing speed 10 m/min, repeat accuracy of 50 microns.

High speed cutting:
25 mm carbon steel sheet pre punch time < 3 s @ 3000 w, greatly improve cutting efficiency.

Independent Control Cabinet

Dust-proof
* All electrical components and laser source are built-in to the independent control cabinet with a dust-proof design to prolong the lifespan of the electrical components.

Automatic Thermostat
* The control cabinet is equipped with air conditioner for automatic constant temperature.This can prevent excessive temperature damage to components in summer.
Transmission And Precision
LXSHOW fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa
motor and Taiwan Hiwin Rails. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 15 years.
